smart forvision Concept For 2011 IAA

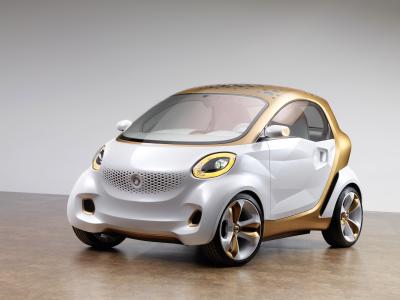

forvision 1 at smart forvision Concept For 2011 IAA

Forvision is the name of the latest smart concept car, designed and developed jointly with BASF, for this year’s Frankfurt Motor Show.

The futuristic looking forvision is an electric car built on the platform of the fortwo, designed to satisfy three criteria of energy efficiency, lightweight design and temperature management. That’s why smart used BASF’s expertise in materials to make a car which showcases technologies for sustainable and holistic electric mobility of the future.

This weird little car features hexagonal transparent areas on the roof, which not only look cool, also generates energy. Transparent solar cells covering the entire roof surface are the technology used here. If the vehicle is standing in the sun the ventilation is permanently operated with the help of these solar cells, keeping the car cool.

Other unique feature is the transparent OLEDs (organic light-emitting diodes) that illuminate the vehicle interior when the door is opened or a button pressed. When switched off they allow for a clear view outside.

Weight saving has also been a prorioty in designing this car. The wheels for example are developed by BASF from a new high-performance material results in a considerable weight saving of three kilograms per wheel. In addition to the tridion passenger cell, further components such as the doors are made of carbon-fiber-reinforced epoxy resin for lightness and rigidity.

But it’s not all about technology and nothing else. The car also has unique design cues, and a very nice interior, which can be used in upcoming models. Read more about them in the press release after the pictures…

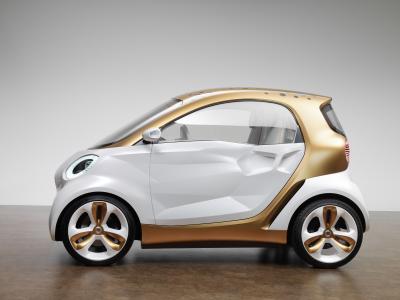

forvision 2 at smart forvision Concept For 2011 IAA

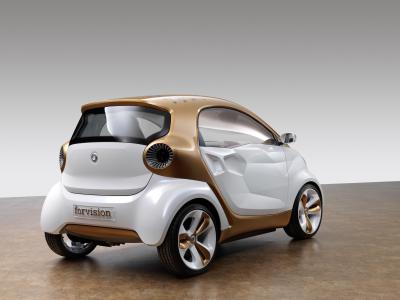

forvision 3 at smart forvision Concept For 2011 IAA

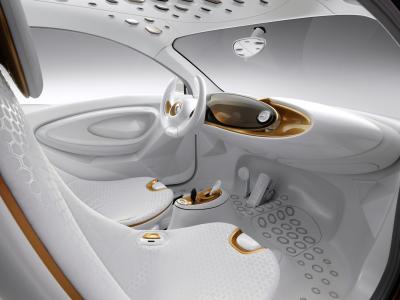

forvision 4 at smart forvision Concept For 2011 IAA

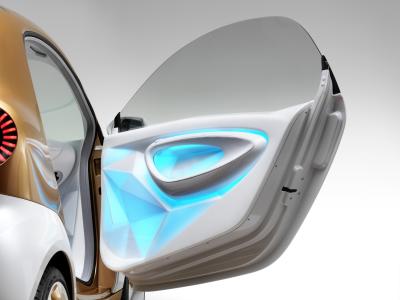

forvision 5 at smart forvision Concept For 2011 IAA

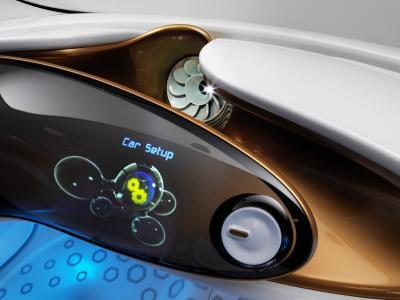

forvision 6 at smart forvision Concept For 2011 IAA

Cool coatings – cool interior

The infrared-reflective and extremely scratch-resistant coating system covers two important aspects at once. Firstly, it supports the extensive temperature management system and, secondly, the brilliant and high-quality look of the coating underlines the unique design of the smart forvision. The concept vehicle features a white special-effect coating with glass flakes that create a gleaming metallic look. An important side effect: the colour white reflects heat rays from sun and light particularly well. But even surfaces coated with dark colours stay much cooler thanks to special colour pigments from BASF. They ensure that heat radiation is reflected rather than absorbed. This leads to a temperature reduction of up to 20 degrees Celsius on the paint surface and of up to approximately four degrees in the vehicle interior.

Futuristic design trendsetter

Painted in pearl white and accentuated by the tridion safety cell coated with a copper-coloured liquid metal paint, there is a deliberate connection between the basic structure of the smart forvision and the design of the smart fortwo. Trendy yet high quality – the aluminium flakes in the liquid metal paintwork create a reflecting surface on the safety cell, changing between light and dark depending on the viewer’s perspective. Both the panels and the cell of the smart forvision are additionally painted with an extremely scratch-resistant clear coat.

The faceted side doors with integrated door openers are a real eye-catcher. Here, plastic is presented in a new, expressive and three-dimensional form; a reinterpretation that is only possible at smart thanks to the consistent use of plastic. The precise facets give the area stability and enable a smaller material thickness to be used. Optimal use is made of the possibilities offered by plastic as a material. In contrast, the front and rear have a softer design with smooth transitions from the doors. Just as the integrated door handle does not need an additional component, the familiar smart air inlet is represented by small hexagons located right on the outer skin.

The jet-like rear lights are reminiscent of small aircraft turbines and give the rear a futuristic and sporty look. Inside the lights, small propellers convey the air from the inside to the outside. In addition to all the light functions needed, transparent stacks in the form of rings around the lights also show the charge status of the battery during charging.

The headlamps are emphasised by a ring comprising the daytime driving lights and indicator functions. The lights add to the likeable expression of the smart forvision.

Doors open to the future

With a mix of polygonal surfaces and organic shapes the interior of the smart forvision builds a bridge to the architectural design handwriting of the exterior. This also applies to the colour concept: a cool white dominates in the interior as well, accentuated by the inner part of the instrument panel in liquid copper. Hexagons in the form of white rubber nubs on a white floor are a reference to the design idiom of the overall vehicle, as is the tone-in-tone design of the seat upholstery.

The faceted surface of the side doors is also found on their inside. The polygonal surfaces with integrated armrests and stowage compartments curve into the interior. They are painted in the body colour and feature coloured LEDs. These guide the driver with a light animation running from the outside to the inside when the door is opened and closed. After closing the door the animation changes to unobtrusive ambient lighting.

The elliptical user interface with a copper coloured frame – matching the lightweight tridion – is semi-transparent when switched off. When the vehicle is switched on all cockpit information is then projected onto the transparent surface. The driver uses a touchscreen to switch between operating menus.

The white steering wheel that is reminiscent of an aircraft yoke additionally gives the cockpit a futuristic look. As well as function buttons the LED display for the battery charge status is found here.

Forward-looking technologies

The smart forvision not only shows that electric mobility can make emission-free driving possible. At the same time, it paves the way for new technologies in the automotive sector. Many of these innovations are based on nano technology, the key to the development of sustainable solutions. Nano materials serve as drivers of innovation in the automotive industry, as they do in the fields of construction, energy, healthcare and electronics.

The total of all technologies integrated in the concept vehicle make a perceptible contribution to increasing the range.

This is always at the centre of discussions relating to battery-electric driven vehicles. With maximum energy efficiency, intelligent temperature management and consistent lightweight construction it is possible to increase the range by up to 20 percent. An additional bonus for electric mobility of the future.
