Modular Transverse Matrix (Modularer Querbaukasten) or MQB for short, is the name Volkswagen’s new paltform that will underpin various models from VW, Audi, Skoda and Seat.
Technical details of the system are catastrophically boring, but it results in a significant cost saving for VW group.The first cars to use this system are the successor to the Audi A3 and the next generation Golf, the Mk7
At the Volkswagen brand alone, it will cover Polo, Beetle, Golf, Scirocco, Jetta, Tiguan, Touran, Sharan, Passat and Volkswagen CC. MQB enables the manufacturer to practically build all these models on the same production line. They might differ in wheelbase and track width, but the flexibility of this technology makes it possible to produce all models together.
Within the Group, the MQB developed under the auspices of the Volkswagen brand is supplemented by the Modular Longitudinal System (MLB) from Audi, the Modular Standard System (MSB) with Porsche as the competence centre and finally the ‘New Small Family’ – the most compact vehicle model series with the Volkswagen up!, SEAT Mii and ŠKODA Citigo.
Now buckle up for some deep technical details. We tried to read it all, but we nodded off half way thorough!

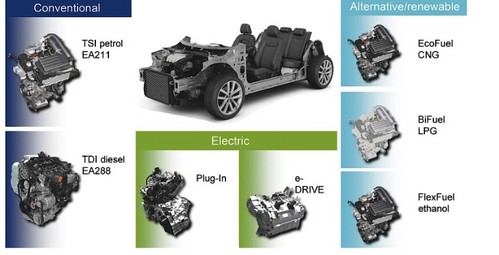

One of the prominent characteristics of the Modular Transverse Matrix is the uniform mounting position of all engines. Two systems integrated in the MQB strategy which play a key role here are the modular petrol engine system (MOB) with the new EA211 engine series (60 to 150 PS) – this range includes the world’s first four-cylinder engine with cylinder deactivation (ACT) – and the modular diesel engine system (MDB) with the new EA288 engine series (90 to 190 PS). In one fell swoop, the new engine series will reduce the Group’s engine and gearbox variants in the MQB system by approximately 90 per cent, without a detrimental effect. On the contrary; in addition to standardising conventional internal combustion engines, the MQB also enables an identical mounting position for all current alternative drive concepts without limitations – from natural gas and hybrid versions to the pure electric drive. Volkswagen has already announced the launch of the latter within the MQB in 2013 in the new Golf Blue-e-Motion.
The MQB opens up new opportunities at the Volkswagen Group, allowing it to produce high-volume and niche models at the highest quality and extremely competitive costs over the long term and worldwide – vehicles that are individually tailored to the requirements of very diverse markets such as Europe, China and America, as well as emerging markets such as India. In parallel, the Volkswagen Group will significantly reduce vehicle weights with the launch of the first MQB model series and will introduce 20 innovations in the areas of safety and infotainment, which until now were reserved for higher vehicle segments.
They include the new multicollision brake; after an initial collision, it helps to reduce the intensity of secondary collisions by automatically initiated braking. Very recently, ADAC awarded this system the ‘Yellow Angel’ award for innovations. The multicollision brake will be standard equipment in the next generations of the Audi A3 and the Golf.
