Red Aston Martin Vulcan Delivered in U.S.

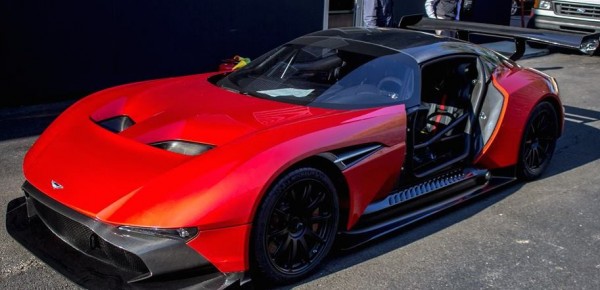

Red Aston Martin Vulcan 0 600x290 at Red Aston Martin Vulcan Delivered in U.S.

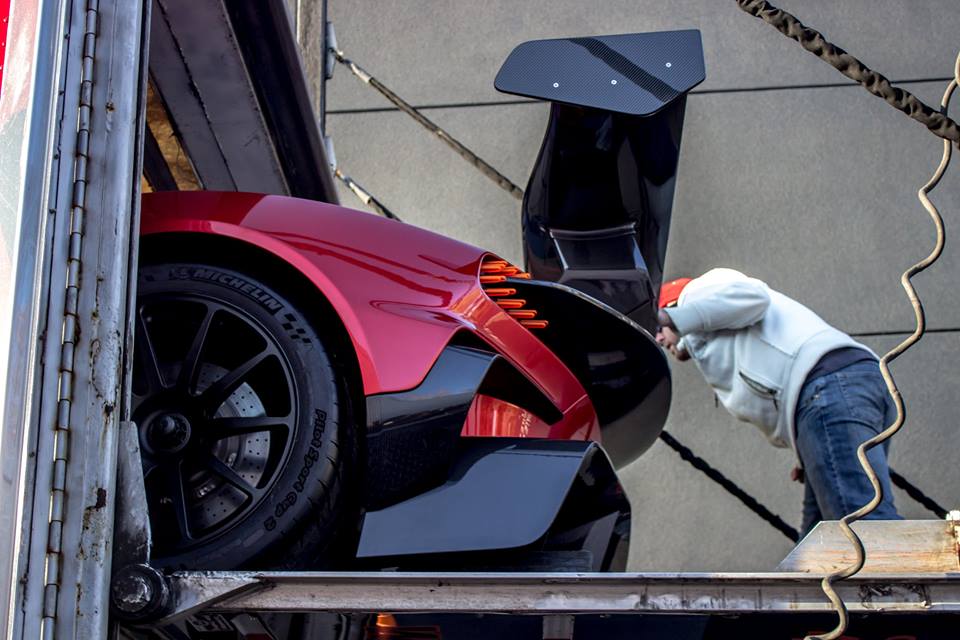

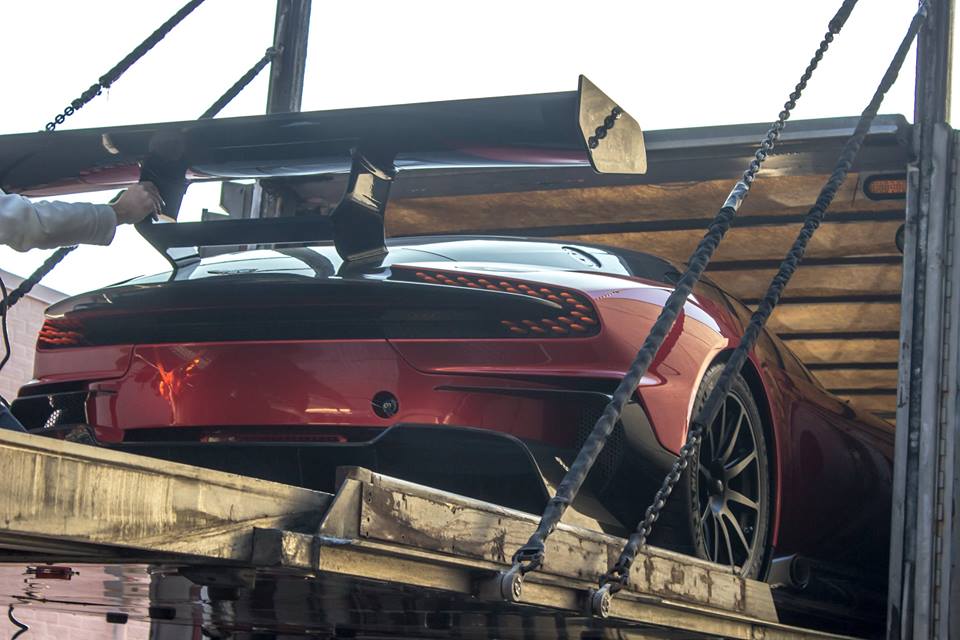

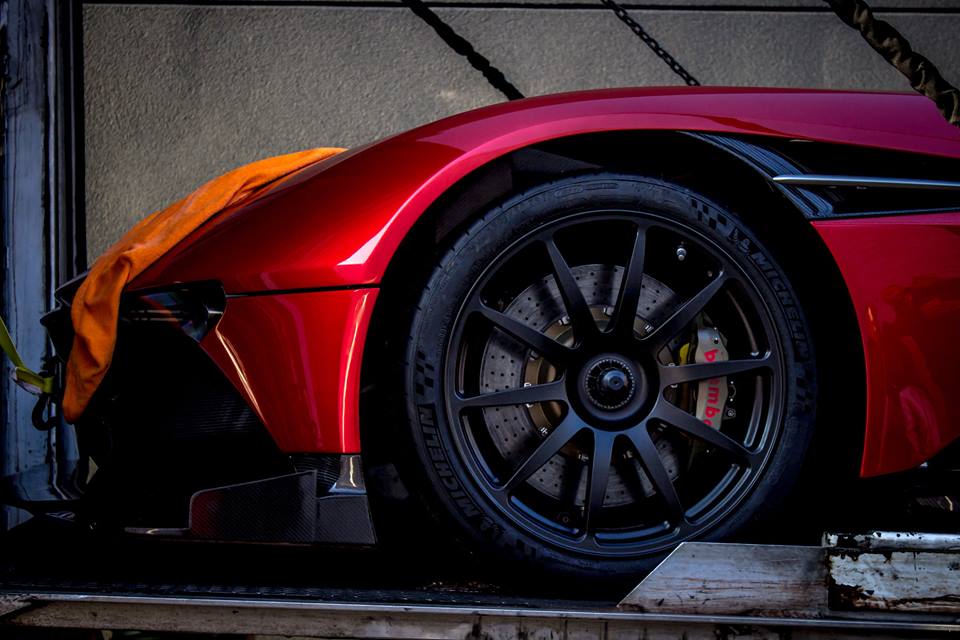

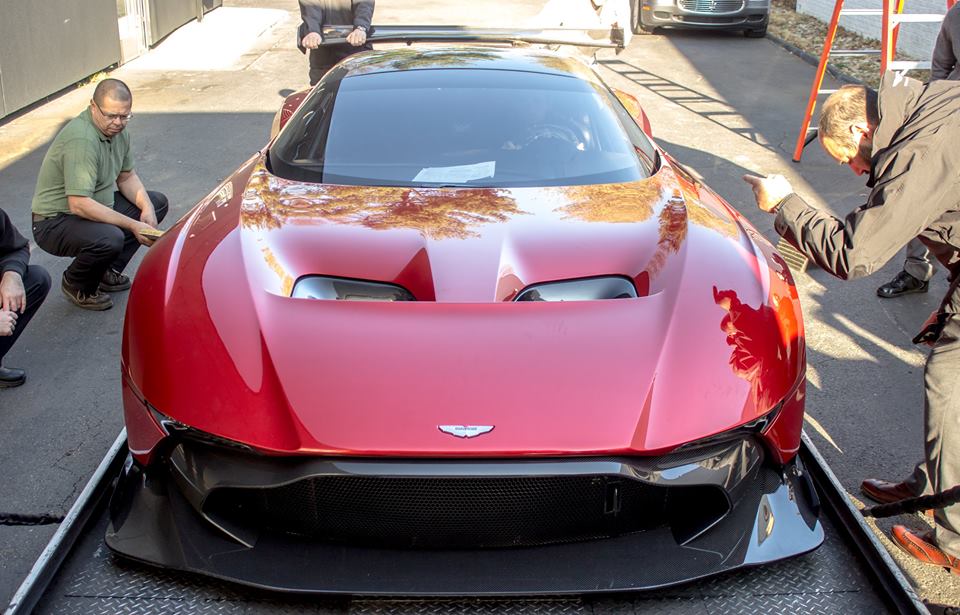

The very first Aston Martin Vulcan hyper track car, one of only 24 worldwide, has arrived in the United States, delivered to its lucky owner through Aston Martin Cleveland. The Vulcan is Aston’s answer to the likes of Ferrari FXX K and McLaren P1 GTR, but it doesn’t have a road-going version.

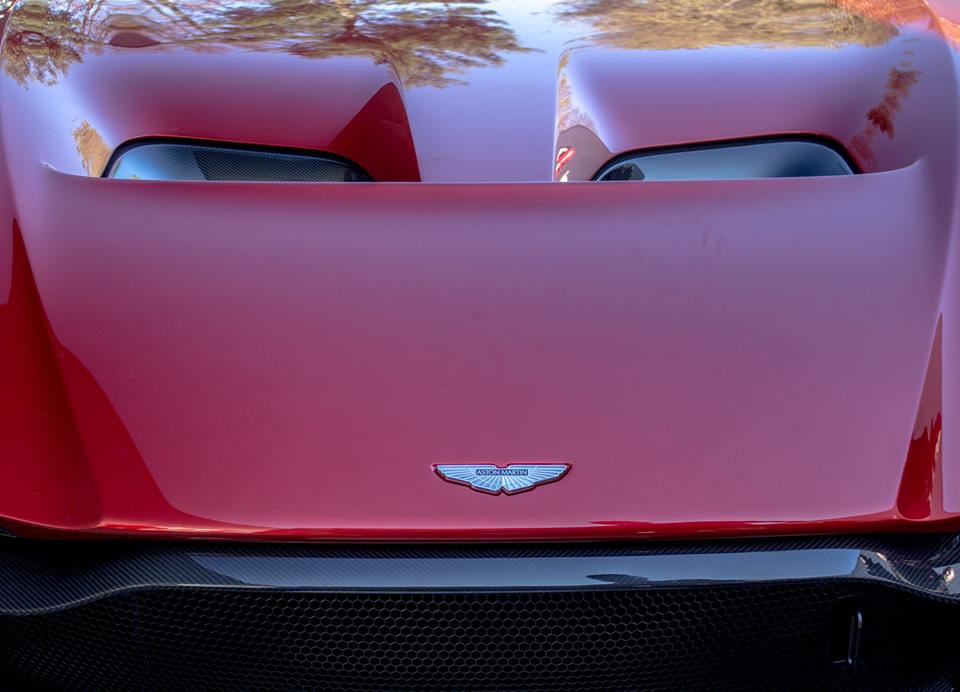

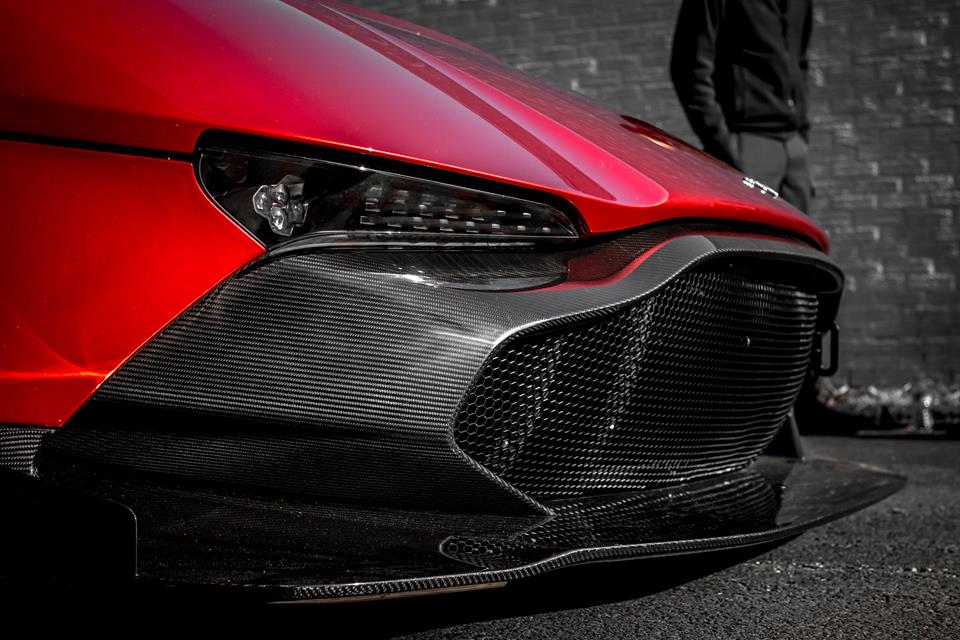

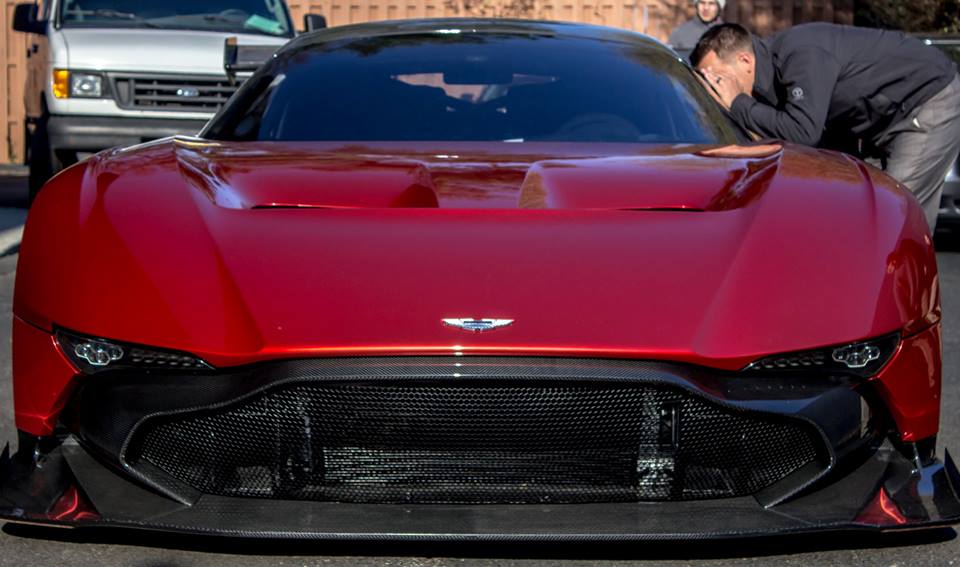

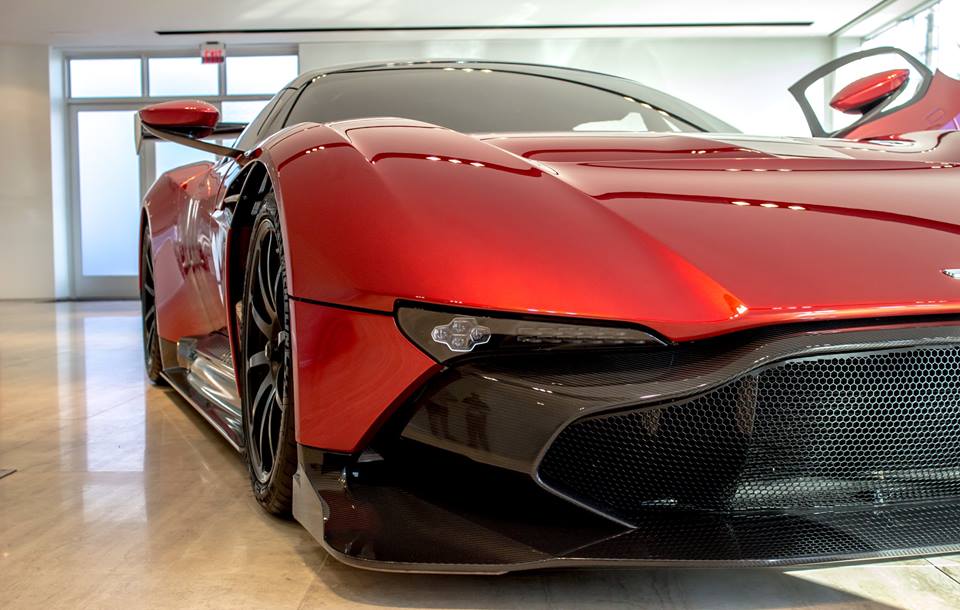

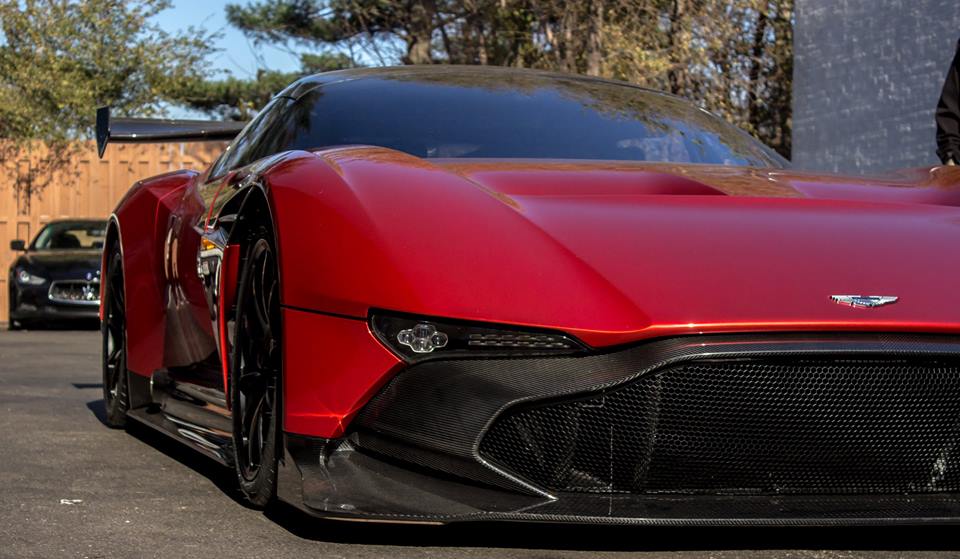

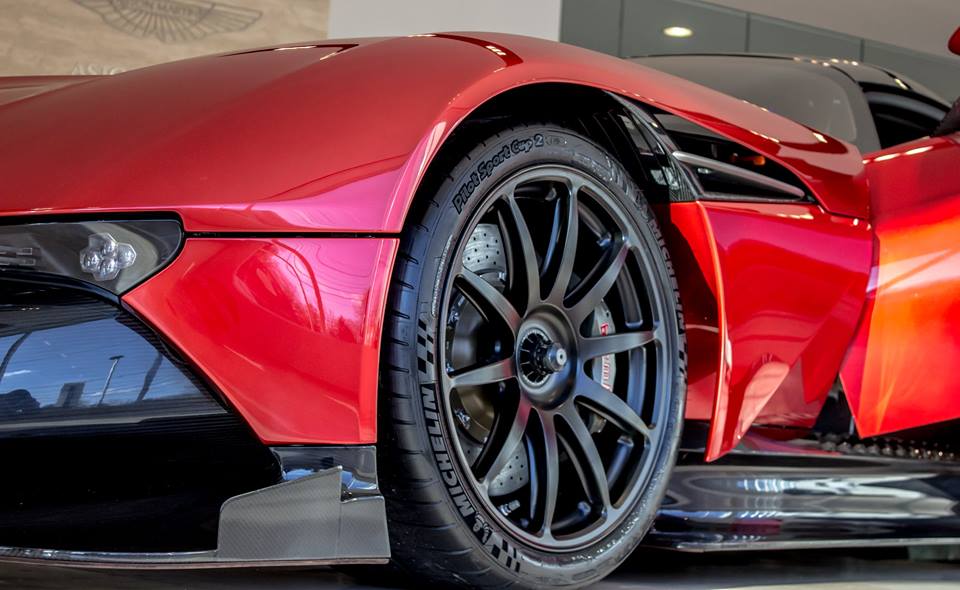

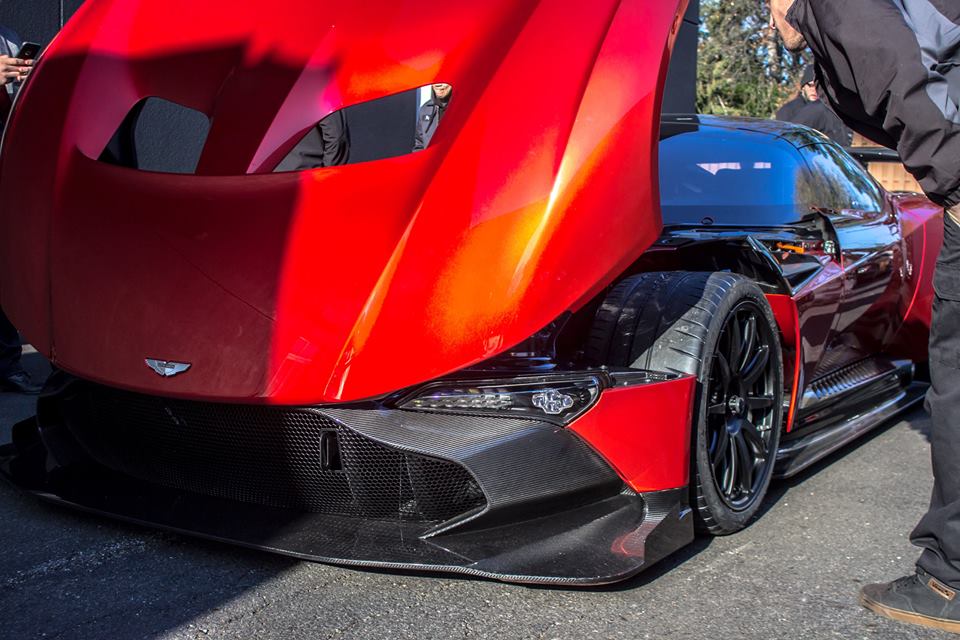

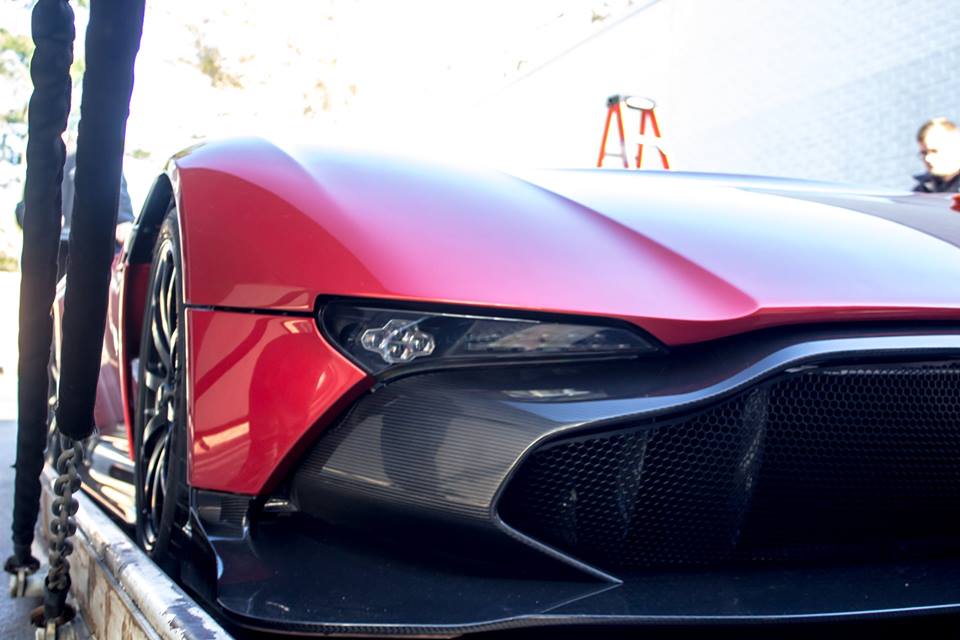

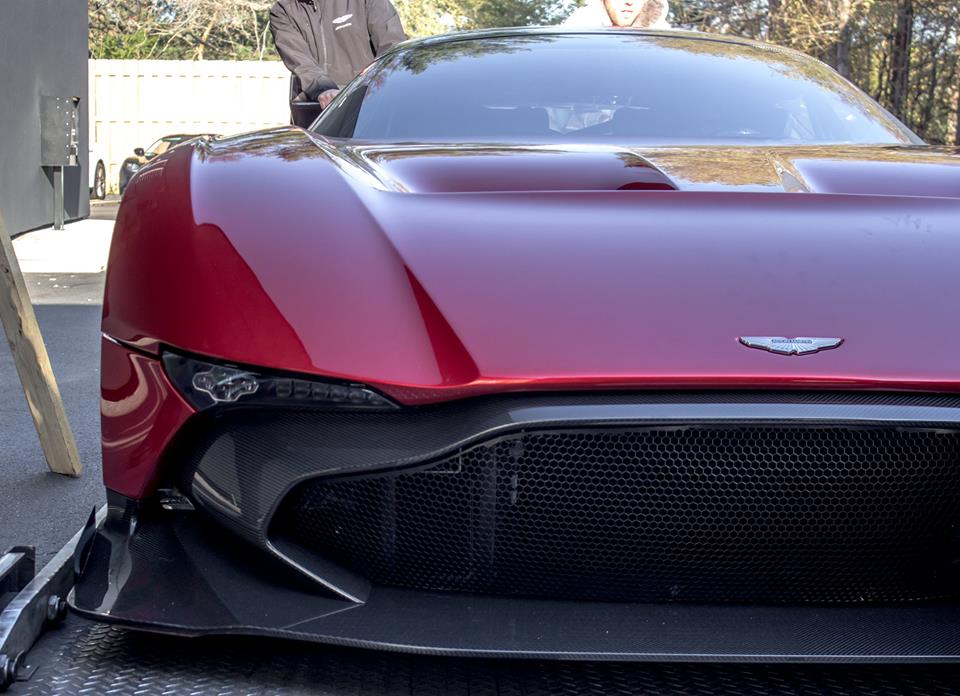

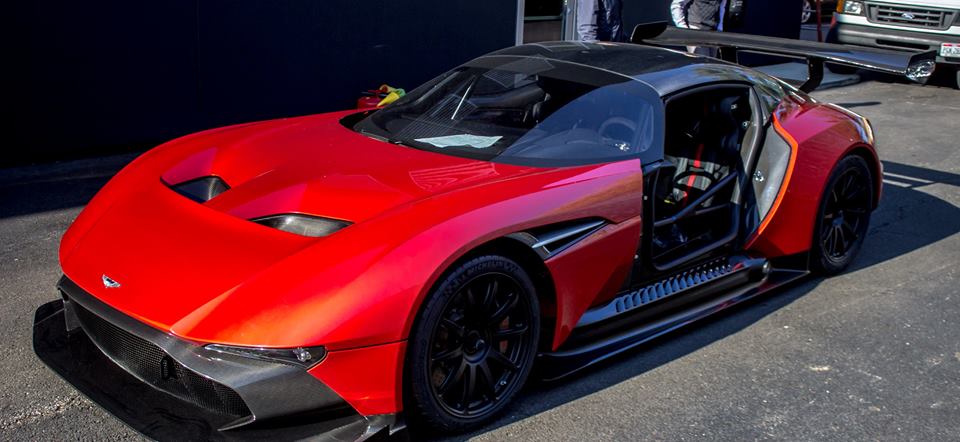

The first Aston Martin Vulcan in the U.S. is finished in a superb red color with orange hues which we sincerely hope is called ‘Vulcan Red’ because it just looks like that. The actual design of the car is a tad controversial, what with that weird looking front-end, tiny headlights and large carbon grille. Then again, this is a track car and not something you can park in front of your favorite bar at Monaco’s Casino Square.

Aston Martin Vulcan detailed specs:

Chassis

  • Using the learning from One-77, we have designed and created an all-new tub. This incorporates a new rear scuttle and tunnel for the integrated roll-cage and a new rear ‘doghouse’ subframe to package the transmission, suspension and increased loading from the rear wing.
  • The use of Carbon Fibre for the whole chassis provides the perfect combination of a lightweight but incredibly stiff structure that provides a strong foundation with which to build Vulcan around it.
  • Produced by Multimatic, the raw tub weighs around 180 kg, and is produced over four days by a dedicated team of 9 people in Canada. It passes into the ‘autoclave’ oven three times.

Engine

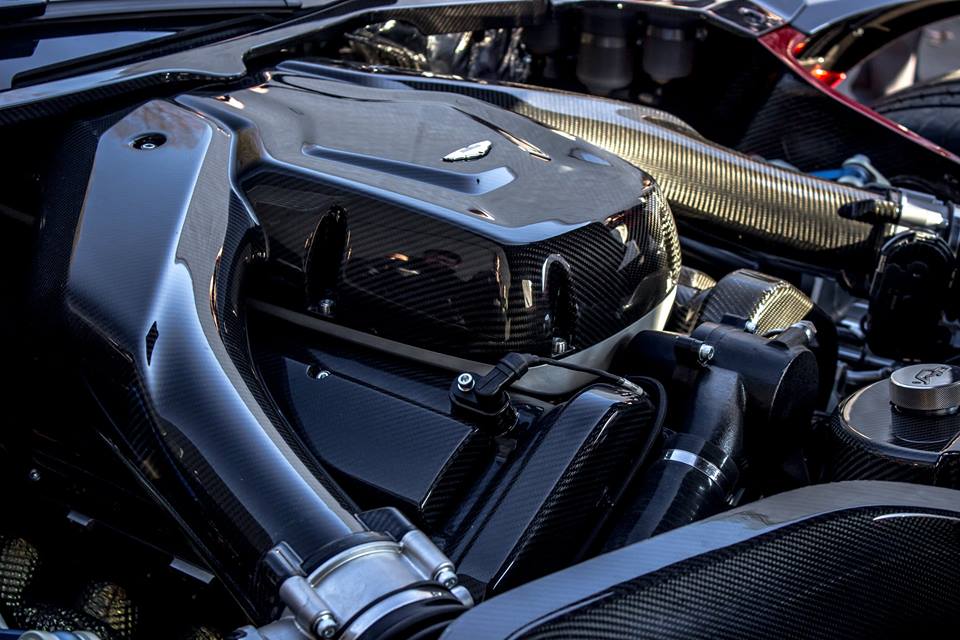

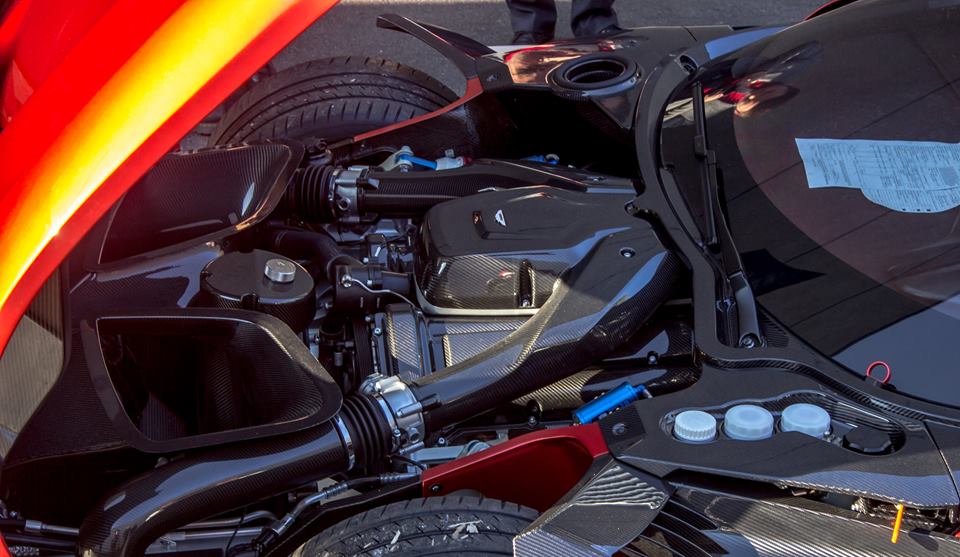

  • Designed and developed in conjunction with Motorsport Partner, Aston Martin Racing, the unique engine is based around the architecture of the engine found in our GT3 race car, the naturally aspirated V12 has been enlarged to 7.0 and comprises a new block, pistons, liners, conrods, crank – all controlled by a Cosworth ECU.
  • The engine is located completely behind the front axle for better weight distribution and therefore dynamic performance.

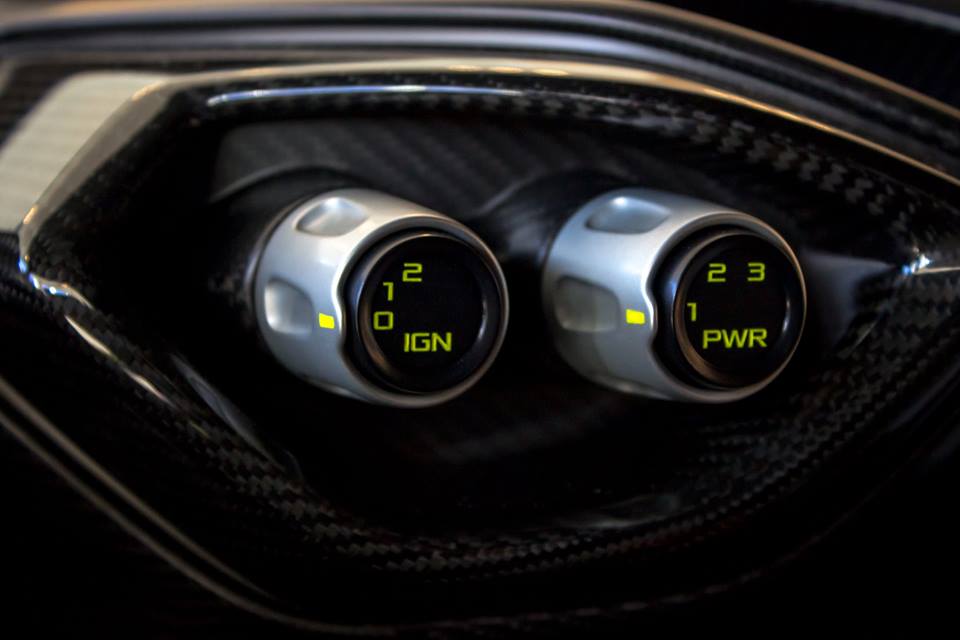

  • The engine will feature 3-position adjustable power outputs which allows the driver to unleash true performance potential as their track skills develop.

Gearbox

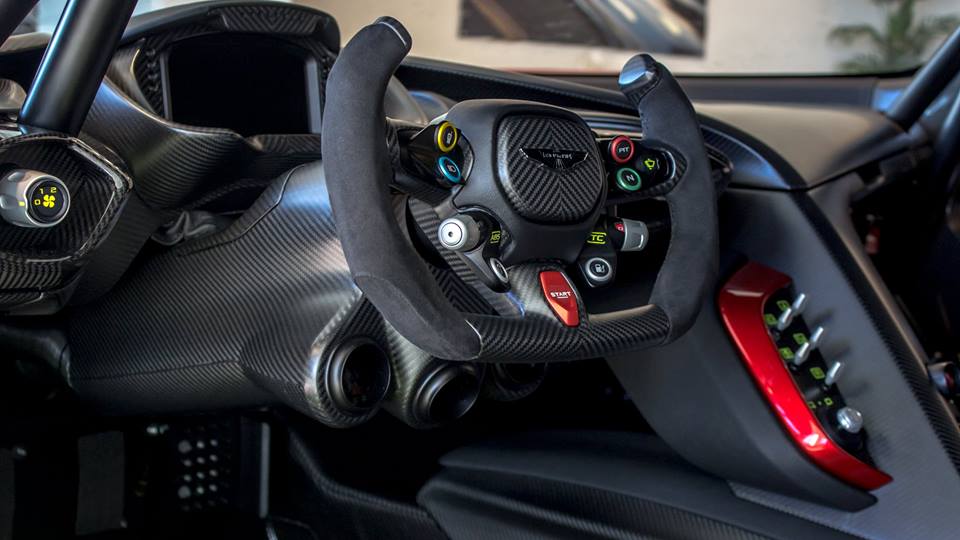

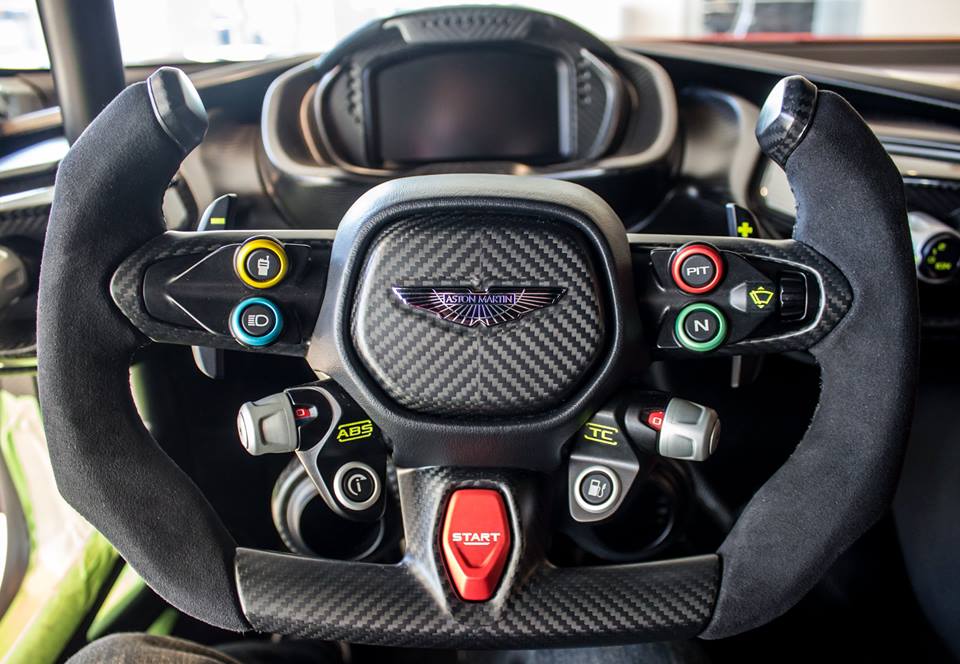

  • Supplied by world-renowned motorsport transmission manufacturer Xtrac, the 6-speed transaxle sequential gearbox is controlled by steering wheel-mounted paddles (not fixed on steering column).
  • The 600E gearbox houses a straight-cut gearset with drop gears to the crown wheel and pinion and, at 200+ mph, is geared for a higher top speed than our GT race cars (depending on tyre and downforce set up).
  • Compared to a standard 600 gearbox the design for the Aston Martin Vulcan features a higher grade of steel for the gears as well as a unique set of gear ratios.
  • The gearbox weighs only 70 kg and features a lightweight aluminium casing.

Suspension

  • The front suspension is comprised of a Double wishbone arrangement with anti-dive geometry operated via a pushrod mechanism.
  • The rear suspension comprises Independent double wishbones with anti-squat and anti-lift geometry, again pushrod operated.
  • The front and rear anti-roll bars are also adjustable.
  • The dampers are of a 4-way adjustable design featuring Dynamic Suspension Spool Valve (DSSV) technology. These state-of-the-art valves enable both high and low speed bump and rebound to be adjusted independently on each individual damper.
    Blue = (B)ump, Red = (R)ebound
  • The rear dampers are horizontally opposed whereas the front dampers are mounted front to rear to enable weight save.
