Renault Fluence Z.E. And Kangoo Z.E Designs Confirmed

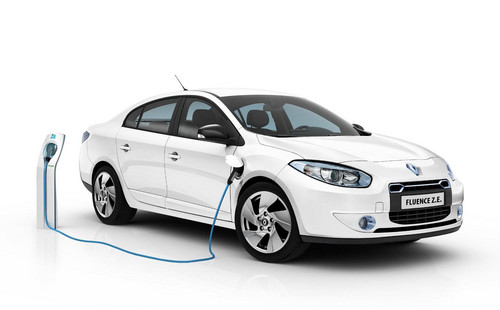

reanult ZE 1 at Renault Fluence Z.E. And Kangoo Z.E Designs Confirmed

Last year Renault announced the new Fluence Z.E. but only now the design and specs for this car and the other Z.E. electric car, the Kangoo Van have been finalized. These cars are developed for less important markets such as the Eastern Europe, and they are all-electric models with zero emission.

The Fluence Z.E. is powered by a synchronous electric motor with rotor coil.developing 70kW at 11,000rpm and maximum torque of 226Nm. Renault says that the acceleration is linear, but does not mention the number, so it must be poor! And so is the 135 km/h top speed of this thing. It also has a range of 160 Km on a single charge.

The Kangoo Van is powered by a different version of this electric motor with 44kW and it has a top speed of 130 km/h. It also has the same range of 160 Km of zero emission cargo delivery thanks to its payload of 650 Kg.

Charging these vehicles using the regular household power outlets takes between six to eight hours.

TECHNICAL DATA – RENAULT FLUENCE Z.E.

DIMENSIONS
Length (mm) 4,748
Width (mm) 1,813
Height (mm) 1,458
Wheelbase (mm) 2,701
Front/rear track (mm) 1,537/1,555
Front/rear overhang (mm) 907/1,140
Unladen weight (kg) 1,543
Standard tyres 205/55 R16
MOTOR
Type Synchronous electric motor with rotor coil
Transmission type Direct drive, with reducer and forward/reverse inverter
Maximum power EEC (kW) 70
Maximum torque EEC (Nm) 226
BATTERY
Type Lithium-ion
STEERING
Power steering Electric, variable rate
PERFORMANCE
Range (km, NEDC combined cycle) 160
Top speed (km/h) 135 (capped electronically)

TECHNICAL DATA – RENAULT KANGOO VAN Z.E.

DIMENSIONS
Length (mm) 4,213
Width / with exterior mirrors (mm) 1,829 / 2,133
Unladen height (mm) 1,818
Wheelbase (mm) 2,697
Front track (mm) 1,522
Rear track (mm) 1,536
Ground clearance, unladen/laden (mm) 186 /143
Weight (kg) 1,410
Carrying capacity Between 3 and 3.5 m3
Payload 650kg
Number of seats 2
TECHNICAL DATA
Motor Synchronous electric motor with rotor coil
Power (kW) 44
Maximum revs (rpm) 10,500
Torque 226 Nm
Transmission Direct drive with reducer
Battery Lithium-ion
PERFORMANCE
Range (NEDC cycle) 160km
Top speed (kph) (capped electronically) 130

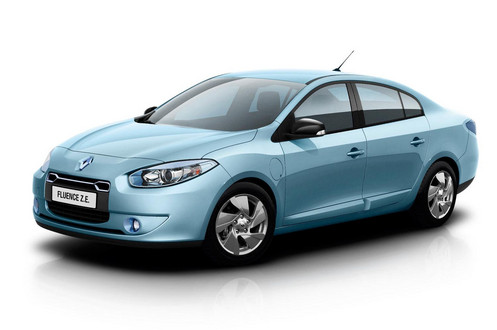

reanult ZE 2 at Renault Fluence Z.E. And Kangoo Z.E Designs Confirmed
reanult ZE 3 at Renault Fluence Z.E. And Kangoo Z.E Designs Confirmed

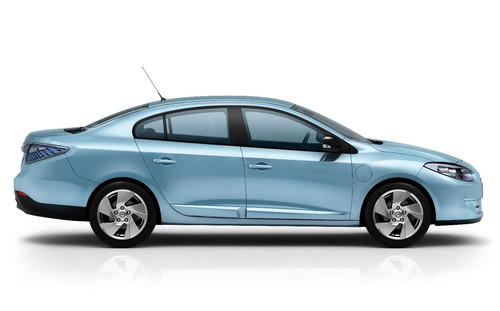

reanult ZE 4 at Renault Fluence Z.E. And Kangoo Z.E Designs Confirmed
reanult ZE 5 at Renault Fluence Z.E. And Kangoo Z.E Designs Confirmed

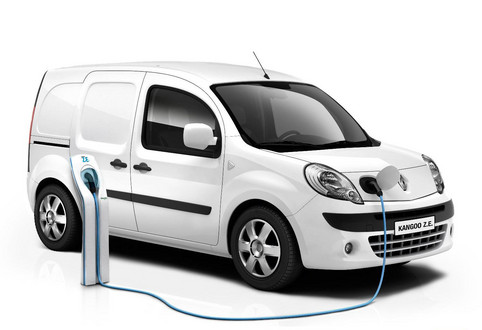

reanult ZE 6 at Renault Fluence Z.E. And Kangoo Z.E Designs Confirmed
