Revealed at 2011 CES, the new Ford Focus Electric showcases a promising future for electric cars. It doesn’t take long for you to realize its advantages. For starters, the Focus Electric is by far the prettiest EV launch to date, and that’s because it just looks like an ordinary car with no unnecessary fuss. So it won’t make you stand out in the crowd as a jolly green!
On the outside the only feature distinguishing it from the normal Focus models is the unique front grille and of course the magnificent plug door located on the front fender. In fact most people won’t even notice it is an electric car, and that’s cool.
What we want to be sure about is that the electric version has the same driving feel as the petrol-powered Ford Focus. The all-electric powertrain and single-speed transmission provide immediate responsiveness and smooth acceleration when the driver pushes down the accelerator, up to a top speed of 84 mph (136 kph). That doesn’t sounds very remarkable, but Ford promises Focus Electric is a dynamic driver’s car.
Ford Focus Electric is the first fuel-free, rechargeable passenger car from Ford and one of five new electrified vehicles they will make until 2013. Of course it has a couple of drawbacks typical of electric cars like limited range and long recharge time, but it has the edge over the competition currently dominating the EV market.
As ford points out the Focus Electric offers a mile-per-gallon equivalent better than Chevrolet Volt and competitive with other battery electric vehicles. Also it is capable of fully recharging in three to four hours at home using the available wall-mounted 240-volt charge station – half the time of the Nissan Leaf.
The convenience features of the Focus E are also very remarkable. It comes with a bespoke version of MyFord Touch driver connect technology especially for electric customers and introduces MyFord Mobile, a smartphone app and website for monitoring key vehicle functions and charge settings while mobile.
Focus Electric offers a host of standard safety and security features including six airbags and electronic traction control, along with hands-free SYNC® telephone connectivity and MyKey® for North America. Extensive eco-friendly materials, such as bio-foam seat cushions and recycled fabrics also are featured in the vehicle.
Other standard features on Ford Focus Electric for North American customers include a unique execution of MyFord Touch driver connect technology, 15-spoke 17-inch aluminum wheels, a 60/40 split rear bench seat, push button start, AM/FM/CD/MP3 Sony® Audio with nine speakers, Sirius® Satellite Radio with Travel Link, HD Radio™ and voice-activated Navigation System.
You can charge Ford-engineered lithium-ion battery pack at home on a daily basis, using the recommended 240-volt wall-mounted charge station that will be sold separately or the 120-volt convenience cord that comes with the vehicle. When plugged in, the Focus Electric onboard charger converts AC power from the electric grid to DC power to charge the liquid-cooled/heated battery pack.
Focus Electric owners will be provided with a suite of driver information systems – on-board and off-board – designed to help them manage the recharge process, manage the most eco-friendly route on-board, monitor battery state of charge and maximize energy efficiency to optimize their driving range. This carefully engineered set of tools is designed to give Focus Electric the edge over competitive products, providing new electric vehicle owners the information they need to enjoy all the freedom gas-free driving has to offer.

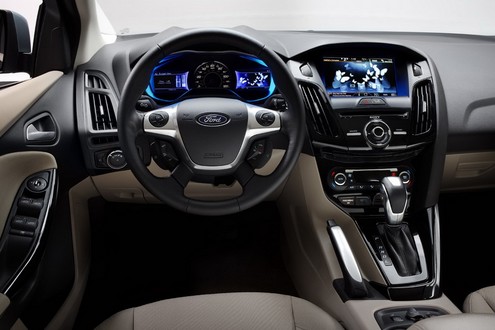

Among these tools is a unique execution of MyFord Touch driver connect technology. Thoughtfully developed for electric vehicle owners, it offers innovative presentation of vehicle information, such as battery state of charge, distance to charge point, the corresponding range budget and expected range margin. The system’s MyView feature allows drivers to access even more vehicle data including the electrical demands of vehicle accessories such as air conditioning, which can impact driving range.
Just as the growing leafy vine of first-generation SmartGauge™ with EcoGuide represents fuel efficiency in the Ford Fusion Hybrid, the cluster display in Focus Electric uses blue butterflies to represent the surplus range beyond one’s charge point destination – the more butterflies there are, the greater the range.
The cluster is also integrated with the MyFord Touch map-based Navigation System using the vehicle’s center stack 8-inch touch screen. After adding their driving destinations, including their next charge point, into the vehicle’s Navigation System, the vehicle will coach drivers on how to achieve the desired range – or if travel plans need to be adjusted. The on-board Navigation System provides an EcoRoute option based on characteristics of efficient EV driving.
Off-board, Focus Electric owners in North America will be able to maintain constant contact with the car anywhere they have mobile phone access using the Ford-developed MyFord Mobile app.
MyFord Mobile is an app that enables access via a smartphone or web-based interface to:
* Receive instant vehicle status information
* Perform key functions remotely
* Monitor the car’s state of charge and current range
* Get alerts when it requires charging or has finished charging
* Remotely program charge settings and download vehicle data for analysis
The new Focus Electric offers a unique value charging feature, powered by Microsoft, to help owners in the U.S. charge their vehicles at the cheapest utility rates, lowering the cost of ownership.
“Value charging allows our customers to reduce their electricity costs by taking advantage of off-peak or other reduced rates from their utility without a complicated set-up process,” said Ed Pleet, manager, Ford Connected Services Organization. “This is a ‘set it and forget it’ approach for the customer to reduce energy cost.”
The tool is designed to help customers avoid unnecessary expense by providing an optimized charge. In the future, these smart charging habits will help utility companies understand and better manage the demands placed upon the electric grid because of electrified vehicles.
Getting charged up
Focus Electric owners are likely to handle one of the vehicle’s charge cord connectors two or more times each day. That’s why Ford worked with supplier Yazaki to provide an industry-standard five-point plug that is ergonomically comfortable to hold as well as durably and distinctively designed.
The plug handle uses a matte-finished black rubber that allows for a comfortable, non-slip grip. The plug head is shielded with a protective glossy white plastic.
When the cord set connector is plugged into the vehicle’s charge port, which is conveniently located between the driver’s door and front wheel well, it activates a light ring that loops around the port twice in acknowledgement of connectivity. The light ring then illuminates in quadrants as the vehicle charges. Flashing quadrants represent charge in progress and solid-lit quadrants show stages of charge completion. In the unlikely event of a fault, the entire ring will flash. When the entire ring is solidly lit, the vehicle is fully charged.
Focus Electric will be powered by an advanced lithium-ion battery system engineered by Ford in cooperation with supplier LG Chem. The battery system utilizes heated and cooled liquid to help maximize battery life and fuel-free driving range.
Thermal management of lithium-ion battery systems is critical to the success of pure electric vehicles. Focus Electric uses an advanced active liquid cooling and heating system to precondition and regulate the temperature in its larger, more complex lithium-ion battery system.
The active liquid system heats or chills a coolant before pumping it through the battery cooling system. This loop regulates temperature throughout the system against external conditions. On hot days, chilled liquid absorbs heat from the batteries, dispersing it through a radiator before pumping it through the chiller again. On cold days, heated liquid warms the batteries, gradually bringing the system’s temperature to a level that allows it to efficiently accept charge energy and provide enough discharge power for expected vehicle performance.
“Focus Electric is the culmination of years of research and development,” said Kuzak. “More importantly, it’s the start of an exciting new era for Ford and our customers.”
