Toyota Proace Revealed Further

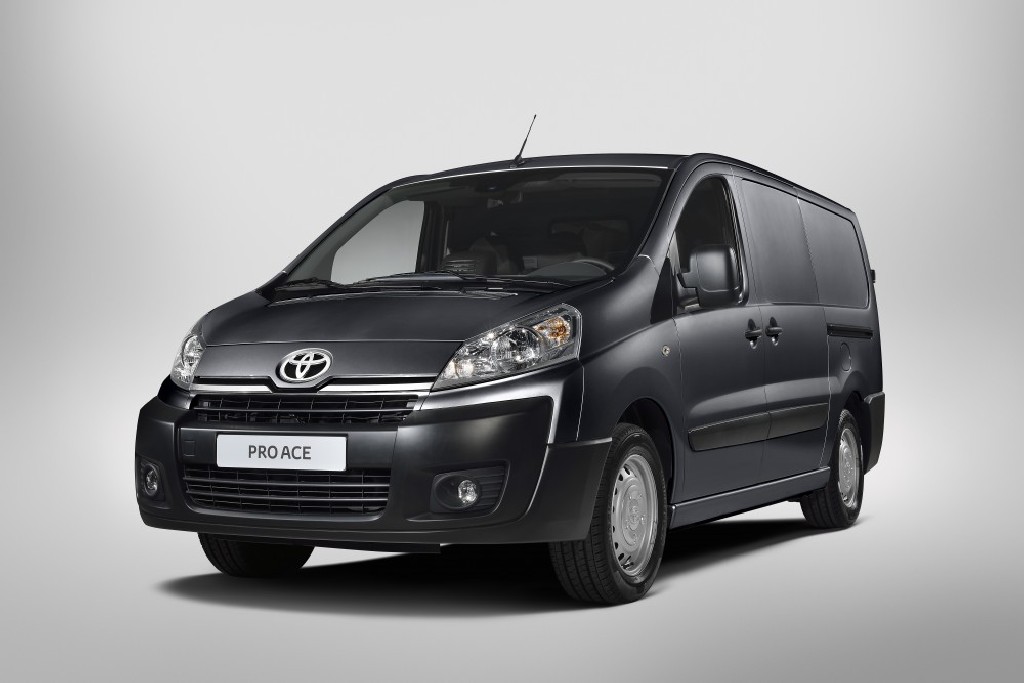

Toyota Proace 1 545x363 at Toyota Proace Revealed Further

Toyota reveals new pictures of its new Proace, a model built in collaboration by the PSA group based on Peugeot Expert, to give the Japanese car maker another shot at the medium duty van market. The Proace will also be produced in France and reach most European markets.

Basically a rebadged Expert, the Proace will be available in two lengths and heights, with load capacities of 5m3, 6m3 or 7m3. Payloads will range from one to 1.2 tonnes and Proace will be able to tow up to two tonnes.

The car has a wide range of usability as it can be specified no just as a normal van, but also a panel van, glass van, or six-seat crew cab. They will also launch various accessories for it to make it suitable for different businesses and operations.

Toyota Proace will be powered by 1.6 and 2.0 liter diesel engines with outputs from 89 to 161bhp, all with Euro 5 standard. You can find the preliminary specs (UK market) after the pictures below:

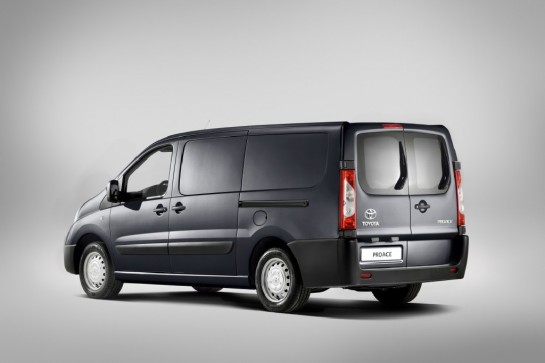

Toyota Proace 2 545x363 at Toyota Proace Revealed Further

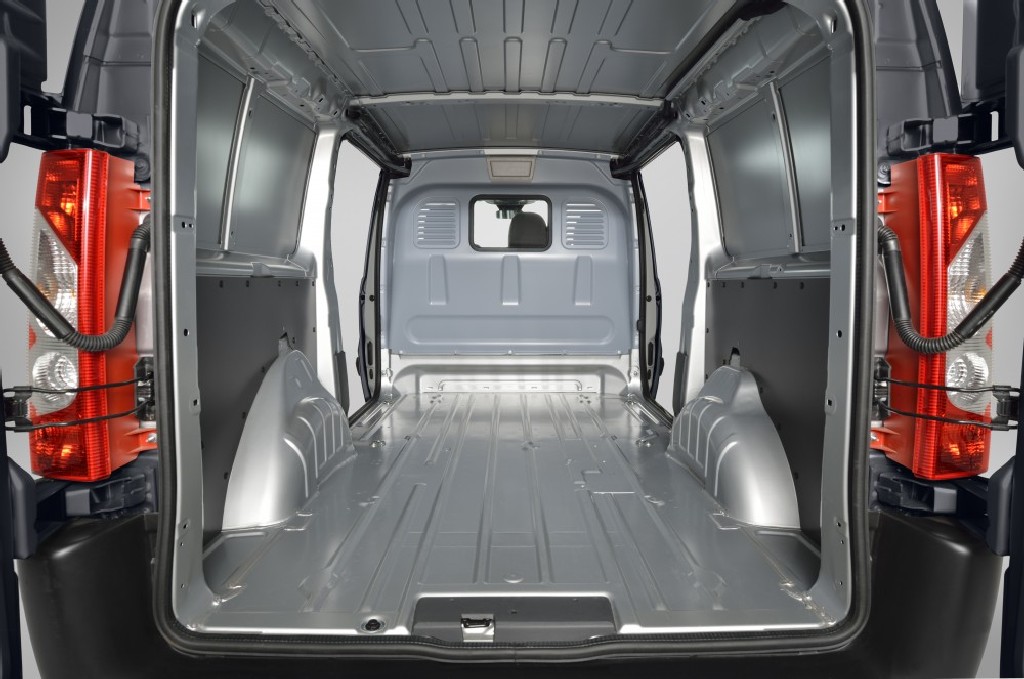

Toyota Proace 3 545x361 at Toyota Proace Revealed Further

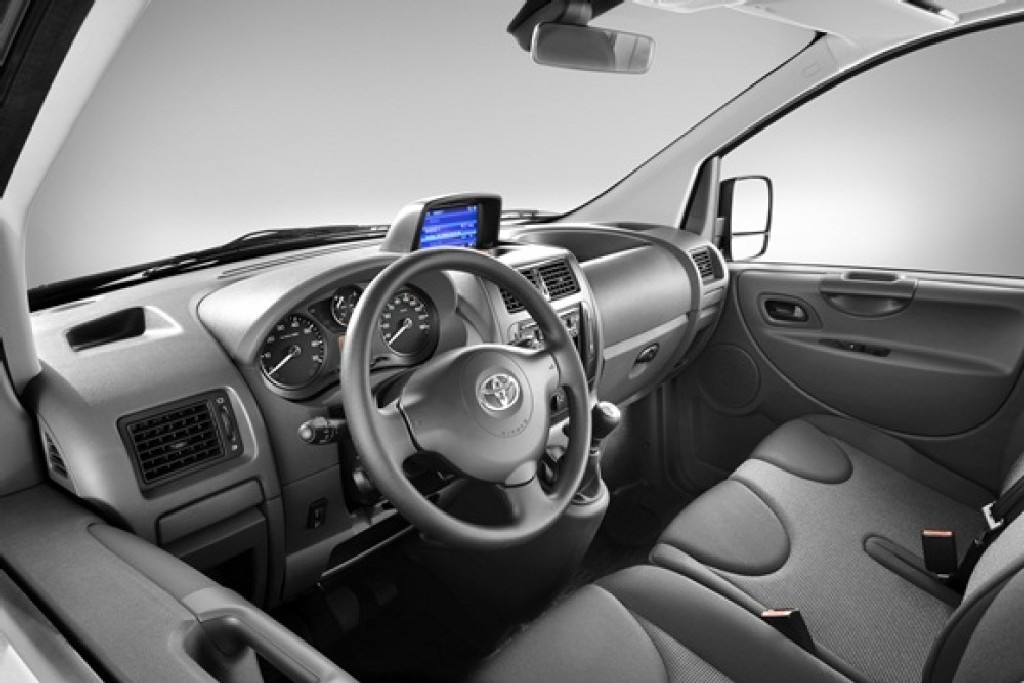

Toyota Proace 4 545x363 at Toyota Proace Revealed Further


Overal length (mm)

L1 – 4,805

L2 – 5,135

Overall height (mm)

H1 – 1,942

H2 – 2,276


L1 – 3,000

L2 – 3,122

Interior loadspace length (mm)

L1 – 2,254

L2 – 2,584

Interior loadspace height (mm)

H1 – 1,449

H2 – 1,750

Interior loadspace width – max. (mm)

All versions – 1,602

Interior loadspace width – between wheelarches (mm)

All versions – 1,245

Load capacity (m3)

L1H1 – 5.0

L2H1 – 6.0

L2H2 – 7.0

1.6 diesel Max. power (bhp/Kw @ rpm)

89/66 @ 4,000

Max. torque (Nm @ rpm)

180 @ 1,500

2.0 diesel Max. power (bhp/Kw @ rpm)

126/94 @ 3,500

Max. torque (Nm @ rpm)

320 @ 2,000

2.0 diesel Max. power (bhp/Kw @ rpm)

161/120 @ 3,750

Max. torque (Nm @ rpm)

340 @ 2,000

Towing capacity (kg)

Up to 2,000

Payload (kg)


Standard features

Daytime running lights

Vehicle Stability Control


Electronic Brakeforce Distribution

Fog lamps

Driver’s airbag

Adjustable steering wheel

Two-seat passenger bench

Electric windows

Remote central door locking

Speed-sensitive auto door locking

Full partition between cab and loadspace

Panelled right and left sliding doors

Panelled rear doors

Optional features

Air conditioning

Cruise control

Speed limiter

Passenger airbag

Side airbags

Rear parking sensors

Audio system with Bluetooth

Tyrepressure monitoring system

Rain-sensing wipers

Dusk-sensing headlights

Electric, heated door mirrors

Window in rear partition

Top-hinged tailgate – panelled or glass

Alarm and deadlocking
