Ferrari F12tdf V12 Engine Detailed in Video

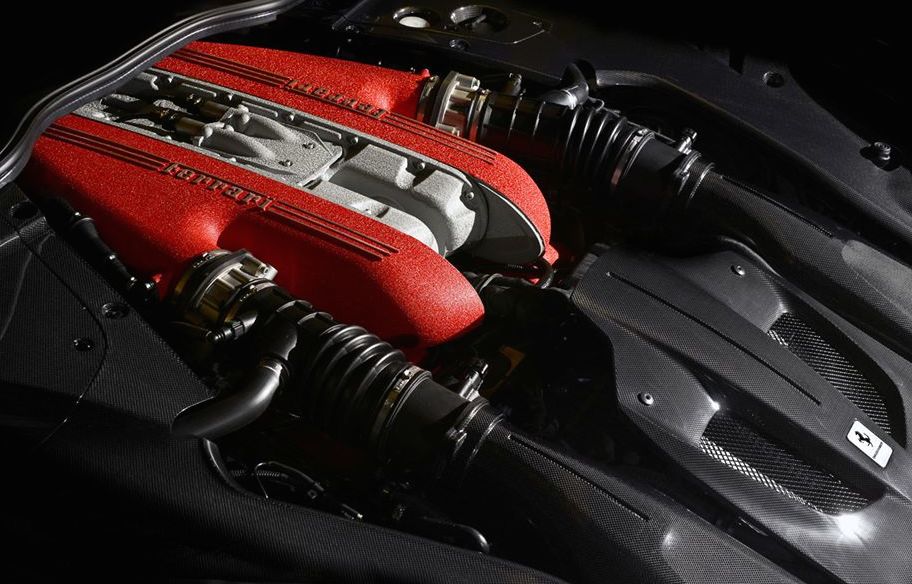

Ferrari F12tdf V12 600x384 at Ferrari F12tdf V12 Engine Detailed in Video

One of the coolest parts of every new Ferrari is their engine, and not just because they make a boatload of power. Ferrari has as way of making the technology that creates that power look so cool and fascinating. Here we take a look at the V12 engine in the new Ferrari F12tdf and would you just look at those trumpets? Aren’t they awesome?

The engine in the Ferrari F12tdf, as we have mentioned before, develops 40 more horsepower than the F12 Berlinetta’s. That has been achieved through the use of race-inspired mechanical tappets and variable-geometry intake trumpets used on Formula 1 cars which help boost volumetric efficiency at high revs.

Ferrari F12tdf Specs:


Type 65° V12
Bore and stroke 3.7 x 2.96 in (94 x 75,2 mm)
Total displacement 382.13 cu in (6262 cm3)
Compression ratio 13,5:1
Maximum power ** 574 kW (780 CV) at 8500 rpm
Specific Output 92 KW/ cu in (125 CV/l )
Maximum torque 705 Nm at 6250 rpm
Maximum revs per minute (limiter) 8900 rpm

Dimension and Weight

Overall lenght 183,3 in (4656 mm)
Overall width 77,2 in (1961 mm)
Height 50,1 in (1273 mm)
Wheelbase 107,1 in (2720 mm)
Front track 65,9 in (1673 mm)
Rear track 63.7 in (1648 mm)
Dry weight* 3119,5 lb (1415 kg)
Kerb weight* 3351,0 lb (1520 kg)
Weight distribution 46% Front – 54% Rear
Fuel tank capacity 24.3 US gal (20.2 UK/gal – 92 l)


Maximum speed over 211 mph (340 km/h)
0-62 mph (0-100 km/h) 2,9 sec
0-124 mph (0-200 km/h) 7,9 sec
62-0 mph 30,5 m
124-0 mph 121 m
