/2011 Peugeot 3008 HYbrid4

2011 Peugeot 3008 HYbrid4

peugeot 3008 hybrid 1 at 2011 Peugeot 3008 HYbrid4

The latest version of the Peugeot 3008 is a HYbrid4 variant, which surprisingly looks good, unlike the original 3008 which looks like it has a disease! The 3008 HYbrid4 is the world’s first diesel full hybrid vehicle, powered by a 2.0 litre 163 bhp HDi diesel engine and a 37bhp electric motor, putting out a healthy 200 bhp, and returning an estimated 74.4mpg, with 99g/km of CO2.

A maximum torque of 500 Nm is available, split with 300Nm at the front from the HDi diesel engine and 200 Nm at the rear generated by the electric motor. The car operate in zero-emission all-electric mode as well, but there’s more to it. You can choose your driving style via a selector in center console which offers these options:

  • “Auto” mode: the entire system is automatically controlled, including operation of the HDi diesel engine and the electric motor. This provides optimal driving for fuel consumption and dynamic performance
  • “ZEV” mode (Zero Emission Vehicle) provides access to an extensive all-electric mode. Activation of the HDi diesel engine is programmed to coincide with only more sustained phases of acceleration. This requires the high-voltage batteries to be sufficiently charged and turns the vehicle into a “city run-around” par excellence due to the total absence of noise and emissions.
  • Four-wheel drive mode (4WD) instructs both power trains to operate together as far as possible; the rear wheels are driven by the electric motor and the front wheels by the HDi diesel engine. It offers peace of mind, safety, improved driveability and accentuates the vehicle’s dynamic character.  At low speed it allows “all-terrain” capabilities equivalent to those of an SUV. The driver will, therefore, no longer be concerned by the prospect of a slippery track or a snowbound uphill drive to a ski resort
  • Sport” mode favours quicker gear changes at higher engine speeds than normal mode. In this mode, the notion of “controlled power” comes into its own, coupling the diesel engine with the electric motor provides more dynamic performance, optimally distributed and transmitted to the road by the four wheel drive for a level of stability and driveability that will appeal to motoring enthusiasts.

Peugeot says their hybrid system also has the following advantages:

  • High performance combined with excellent driveability

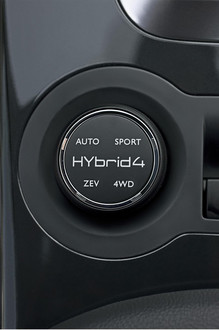

  • Freedom and simplicity of use with the possibility of choosing four different operating modes: ZEV (Zero Emission Vehicle), Four-wheel drive, Auto and Sport
  • Silent operation, when driving in electric only mode
  • Peace of mind offered by the safety inherent in a four-wheel drive vehicle
  • Environmental friendliness with CO2 emissions from 99g/km

peugeot 3008 hybrid 2 at 2011 Peugeot 3008 HYbrid4
peugeot 3008 hybrid 3 at 2011 Peugeot 3008 HYbrid4
peugeot 3008 hybrid 4 at 2011 Peugeot 3008 HYbrid4
peugeot 3008 hybrid 5 at 2011 Peugeot 3008 HYbrid4
peugeot 3008 hybrid 6 at 2011 Peugeot 3008 HYbrid4
peugeot 3008 hybrid 7 at 2011 Peugeot 3008 HYbrid4

The Peugeot 3008 HYbrid4 – In Detail

2.0 litre HDi FAP 163 bhp diesel engine
With a capacity of 1997 cm³, this Euro 5 engine develops a maximum power of 163 bhp at 3750 rpm and a maximum torque of 300Nm at 1580 rpm. To obtain this level of performance it uses Peugeot’s latest generation ECCS (Extreme Conventional Combustion System) combustion chamber design, a variable-geometry low-inertia turbocharger, a high-pressure injection pump allowing a maximum pressure of 2000 bar and solenoid injectors with eight apertures.

Naturally this is combined with the latest generation “octosquare” Eolys additive-enhanced diesel particulate emission filter (FAP) system.

Electronically-controlled 6-speed manual gearbox (BMP6)
The HDi diesel engine is mated to an electronically-controlled manual six-speed sequential gearbox:

  • In automatic mode its electronic control helps provide significant savings in fuel consumption, compared to a traditional automatic gearbox or even a traditional manual gearbox
  • It offers real driving satisfaction derived from the possibility of choosing the gear change mode at any time – manual or automatic – with either the gear lever or via controls behind the steering wheel

The gear change quality of the gearbox has been enhanced with HYbrid4 technology, as the rear electric motor is activated during gear changes to improve the smoothness of the operation, and sustains drive in between gear changes.

Latest-generation STOP & START system
This system places the HDi diesel engine in standby when the vehicle is at a standstill (at traffic lights, a stop sign or in a traffic jam, etc) and when the vehicle is being driven in electric-only mode. It significantly reduces fuel consumption and emissions in urban driving conditions while also enabling.the HDi diesel engine to be restarted instantly and smoothly, when required.

The “high voltage” STOP & START system has a maximum output of 8 kW and can generate enough energy to supply the power requirements for the rear electric motor if required (four-wheel drive mode).

Rear suspension
To ensure a dynamic performance on a par with Peugeot’s reputable road holding standards, the rear electric module also includes a multi-arm rear suspension within which are housed the electric motor and the reduction gearbox.

ESP
The ESP system fitted to the 3008 HYbrid4 incorporates an “improved traction control system” (ASR) able to exploit the car’s four-wheel drive capabilities to the full on challenging surfaces. The performance of the system can be enhanced by the fitment of optional 16’’ ‘Mud & Snow’ tyres.

Electric motor
The synchronous permanent magnet electric motor is located at the rear of the vehicle. It provides a constant 27 bhp, with a peak output of 37 bhp. It generates a constant torque of 100 Nm, or a peak of 200 Nm when necessary.

PTMU (Power Train Management Unit)
The PTMU is the electronic control unit that automatically manages the different operating modes of the HDi diesel engine and the electric motor, programmed to optimise fuel consumption.

An inverter and a converter are used to control the electric power. The inverter controls the torque of the electric motor by regulating the electrical current supplied from the high-voltage battery pack.  It operates in a voltage range of between 150 and 270 volts. The converter reduces the 200 volts from the high-voltage battery pack into 12 volts to supply the vehicle’s onboard systems.

On the Peugeot 3008 HYbrid4 all these components have been made as compact as possible to optimise the installation and weight effect in the vehicle.

High-voltage battery pack
The Ni-MH (Nickel Metal Hydride) batteries are located under the boot floor, near the electric motor.  The high-voltage battery pack is in addition to the standard 12V battery under the bonnet, which carries on performing its normal duties.

In the medium term, this battery technology remains the most appropriate in terms of cost and industrialisation for vehicles produced in large volumes.

Energy recovery
An energy recovery system (the electric motor becomes a generator) enables the kinetic energy created by the vehicle to be transformed into electrical energy to recharge the Ni-MH batteries during deceleration (release of the accelerator pedal and during braking). This recovery system enables the driver to re-deploy the “free” (Kinetic) energy to reduce fuel consumption accordingly.

Man-machine interface
A 7’’ 16/9 colour screen or a multi-function display, according to the car’s specification, informs the driver in real time of the operating status of the hybrid power train.  It also shows, for a given journey, operating times in different modes and the status of the battery charge.

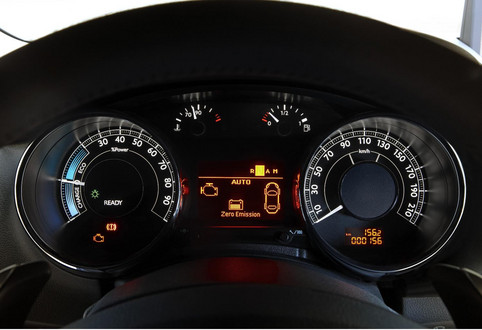

On the instrument panel the left-hand dial indicates the percentage of power used or recovered during phases of braking or deceleration. Different scales indicate the battery status: Charge, Eco (optimal operating range), Power, Boost (maximum use jointly with the HDi diesel engine).

Suppliers
To develop its HYbrid4 technology, the PSA Peugeot Citroën Group has teamed up with suppliers offering the best expertise in each field. Based on the manufacturer’s technical specifications, BOSCH has provided its expertise with respect to the electric motor, the power electronics, the reversible high-voltage alternator / generator and other systems managing the dialogue between these components, the braking and trajectory correction systems (ABS and ESP).  Similarly, SANYO has provided its extensive knowledge in the field of Ni-MH high-voltage batteries.

A distinctive design
The new Peugeot 3008 HYbrid4 is distinguished by its cutting-edge technology, combining responsible driving and driving enjoyment, but also by its specific styling.

At the front, Peugeot’s latest design cues have been adapted to match the 3008’s generous dimensions and to mark a break with existing models. The headlamps now have an integral bar of LEDs providing a daytime lighting function and accentuate the 3008’s appearance. The 3008 HYbrid4 also proudly wears the Marque’s new Lion badge on its bonnet.

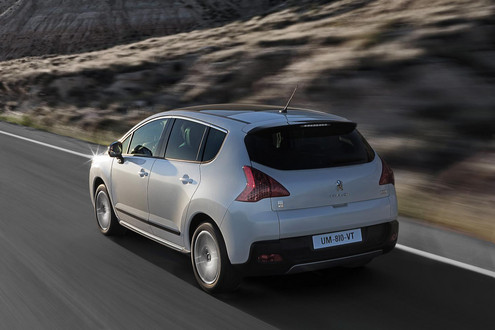

At the rear, the rear spoiler has a two-tone finish with a high gloss black section, helping to differentiate it from the other 3008 models in the range, as do the chrome badges which decorate the sides and rear of the car.

Interior

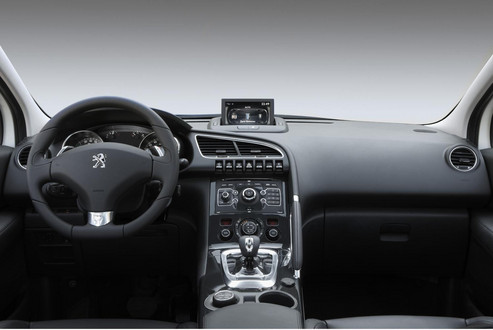

Inside its roomy architecture, the driving position bears all the hallmarks of a top-of-the-range vehicle, or even that of an aircraft cockpit. An expansive fascia panel, controls within easy hand’s reach and an ergonomic centre console clearly separate the territory of the “pilot”. Combined with a raised and dominating driving position it has everything in place to reward its drivers and offer a range of new driving experiences not previously found in a conventional hybrid vehicle.

Distinctive materials are deployed throughout to accentuate the Crossover feel and explore new avenues of expression. This is true in particular of the new and specific  Guérande & Tramontane two-tone leather finish which subtly combines bright pale grey on the seat cushions with a black finish on the sides of the seats.

The gear lever with its modern and elegant design is a key feature of the HYbrid4 technology. It enhances the technological ambience in the same way as the 7’’ colour display which provides information on the flow of energy. A specific steering wheel bearing the signature HYbrid4 adds a touch of exclusivity to the car.

“Multiflex” interior
Due to its intelligent “Multiflex” interior and clever integration of the batteries and the innovative rear suspension, the Peugeot 3008 HYbrid4 can also be transformed to offer a considerable load capacity under the parcel shelf of 420 litres (362 dm3 VDA), with 66 litres (29 dm3 VDA) available under the boot floor.

The split lower tailgate opens to reveal a boot with a flat floor equipped with longitudinal securing rings that exude quality and strength. From the boot, a rear seat folding system, controlled by switches mounted on the load area side trims, allow the seats in the second row to be folded automatically, ‘as if by magic’.

Combined with the folding front passenger seat, the 3008 HYbrid4 offers a perfectly flat floor from the tailgate to the fascia panel. This frees up a gigantic 1501 litre compartment that is easy to load.

Driving aids:
Comfortably seated behind the steering wheel, drivers will note among the equipment at their disposal certain references to the world of aviation.

For example, to ensure that the driver never needs to take an eye off the road ahead, and as in a jet aircraft, essential driving information is projected onto a retractable transparent panel which cleverly extends from the instrument panel. The Head-Up Display system can be adjusted by means of toggle switches.

These switches, located above the centre console, add a further touch of style to the in-car ambience. They also control another original item of equipment – the Distance Alert system. As its name implies, this function helps the driver to keep aware of the safe distance from the vehicle in front, according to the 3008’s speed.

Another item of equipment that helps to ensure maximum driving convenience is the Parallel Park Assist (PPA). This system assesses the size of a space during parking manoeuvres and determines the possibility of parking in it.

Similarly, the electric handbrake coupled with the Hill Assist function, helps the driver during manoeuvres but also optimises the interior space within the vehicle.

Finally, a latest-generation satellite navigation system helps to guide users on their travels.

The Peugeot Connect 3-D Media Navigation (NG4) includes all the benefits of the Marque’s existing satellite navigation systems. These include a juke-box function, linked to a hard disc, Peugeot Connect services, GSM function, a USB connector, a DVD player, a Bluetooth® system and a display which shows specific buildings in full 3D.

The Peugeot 3008 HYbrid4 is a Crossover with an exceptional technological content offering unique versatility and safety, unrivalled driving enjoyment and CO2 emissions of a very low level. Peugeot’s choice of the diesel hybrid demonstrates that it is possible to combine uncompromising environmental demands with driving experiences not previously available in a hybrid vehicle.

The 3008 HYb
